AA600639X

Affidabilità grazie alla qualità dei componenti - 20.000 ore di lavoro nelle condizioni di temperatura operativa 20°C (ogni 10 gradi in più la vita di motore si dimezza) 6 ppm dei motori difettosi. Certificati CE, VDE, EAC Ampia scelta dei tipi di collegamento Versione pentavalente (5 tipi di fissaggio su un motore) Protetti per impedenza o termicamente

Certificates

Specifications

Cable length, mm	500
Connection type	Plug-in
Certificates	VDE
RPM	1300
IP Rating	IP42
Insulation Class	B

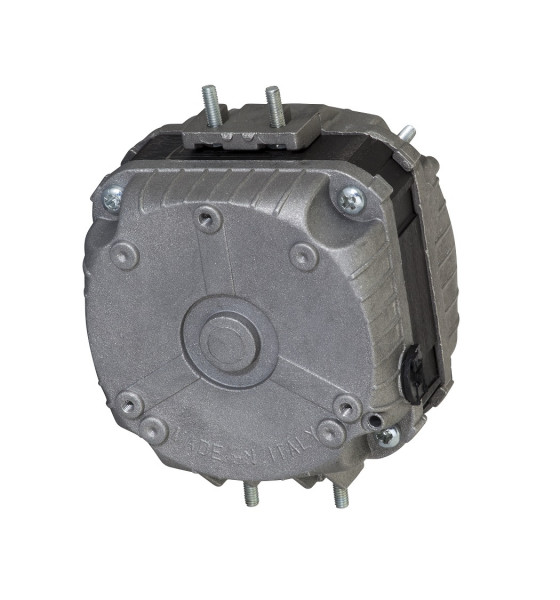

Single phase, 4 poles, asynchronous shaded pole induction motors with thermal protection available with output power range from 5 to 34W.
The standard range is made up by universal “five fixing” motors, IP42 with closed shells, class B (130° C) or class F (155° C) insulation suitable for connection to AC 230V – 50/60 Hz mains. Our motors comply with all the European Directives and
several models are also CE, VDE, GOST-R and UL certified.
FMI is always ready to design and develop motors with customized constructive/electrical specifications.
Their main field of application is industrial refrigeration and ventilation. Other applications are: hair dryers, welding machines, vending machines, heaters etc.

Enhanced versions

Lifetime: 30.000 hours

Resistant for low temperatures
